Please refer to the relevant Cape Advanced TV Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Premiere Pro CC. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Cape Advanced TV.
The encoding process and final quality of files remain the responsibility of the supplier. Cape Advanced TV cannot accept liability for incorrect or low-quality encoding.
Export Sequence

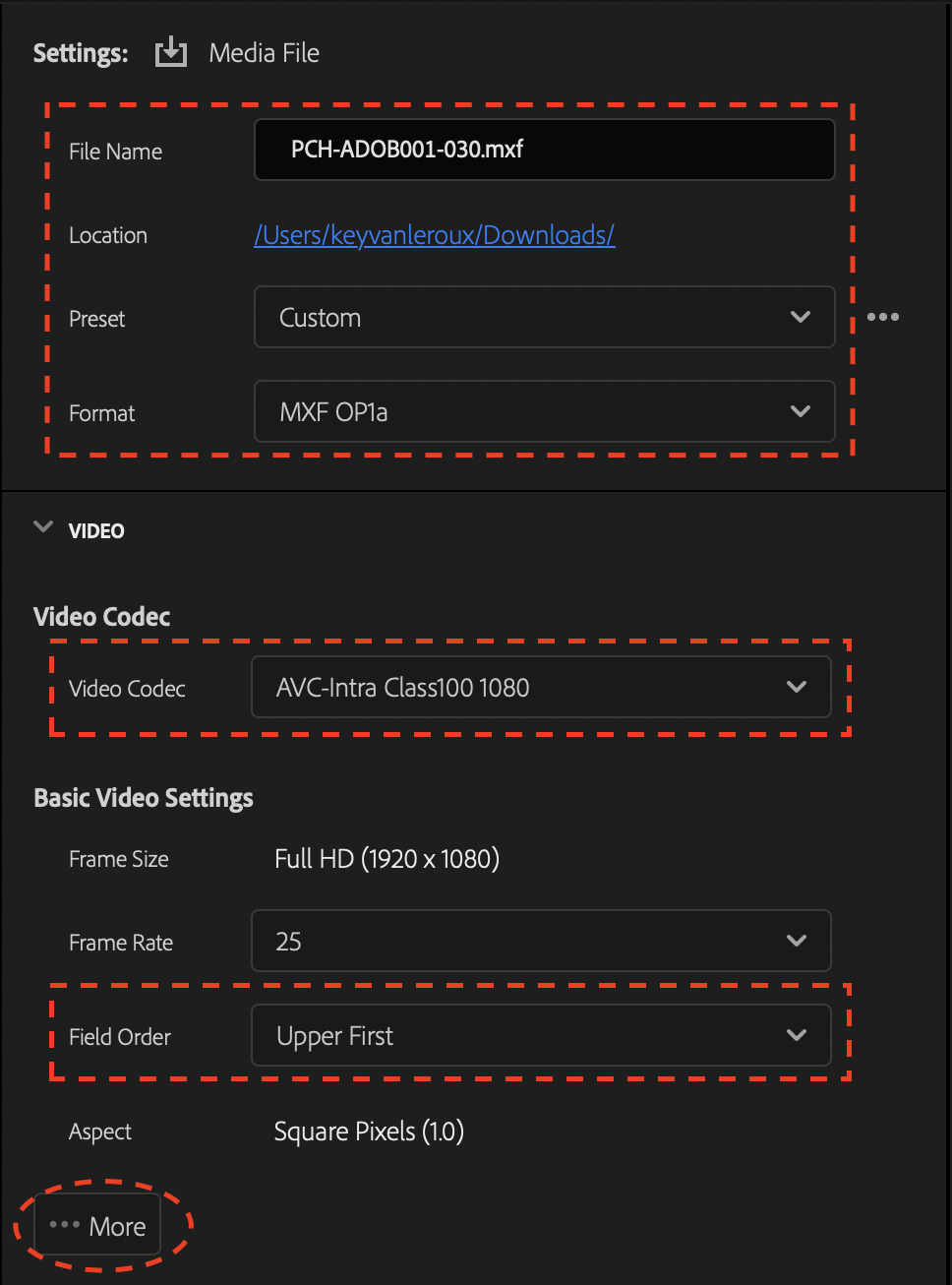

Export Settings
| Select | The Final Sequence |
| Select | File, Export, Media... |
| Format | MXF OP1a |
| Preset | Custom |
| Output Name | Should Match Version ID |
Video Tab
|
Video Codec |
AVC-Intra Class100 1080 |
| Frame Rate | 25 or 29.97 as required |
| Field Order | Upper First |

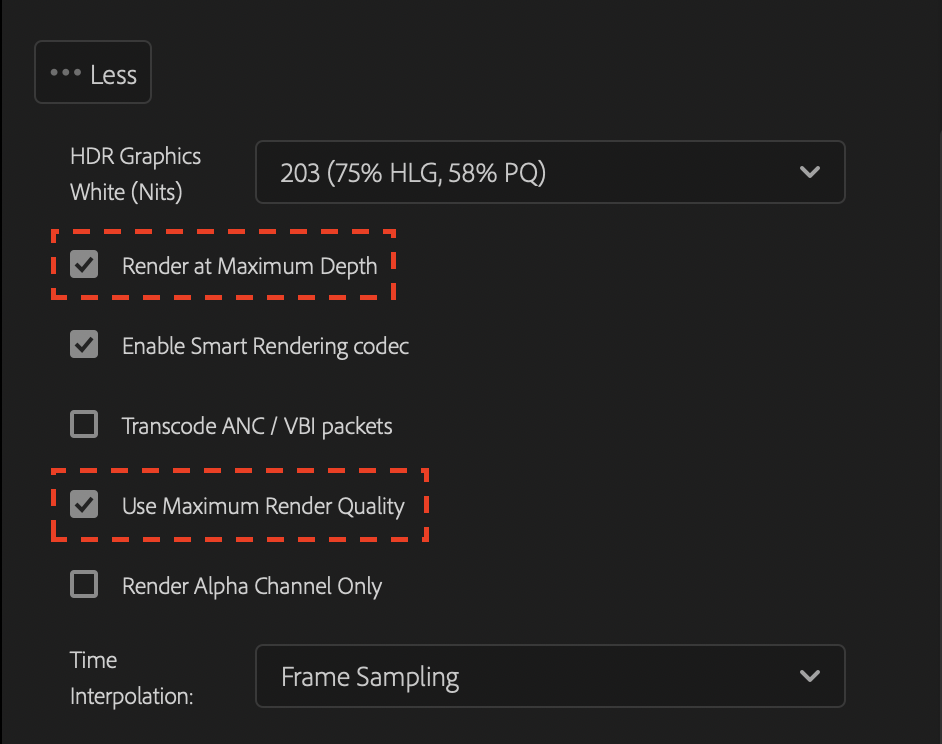

| Click on | ...More |
| Select | Use Maximum Render Quality |
| Select | Render at Maximum Depth |

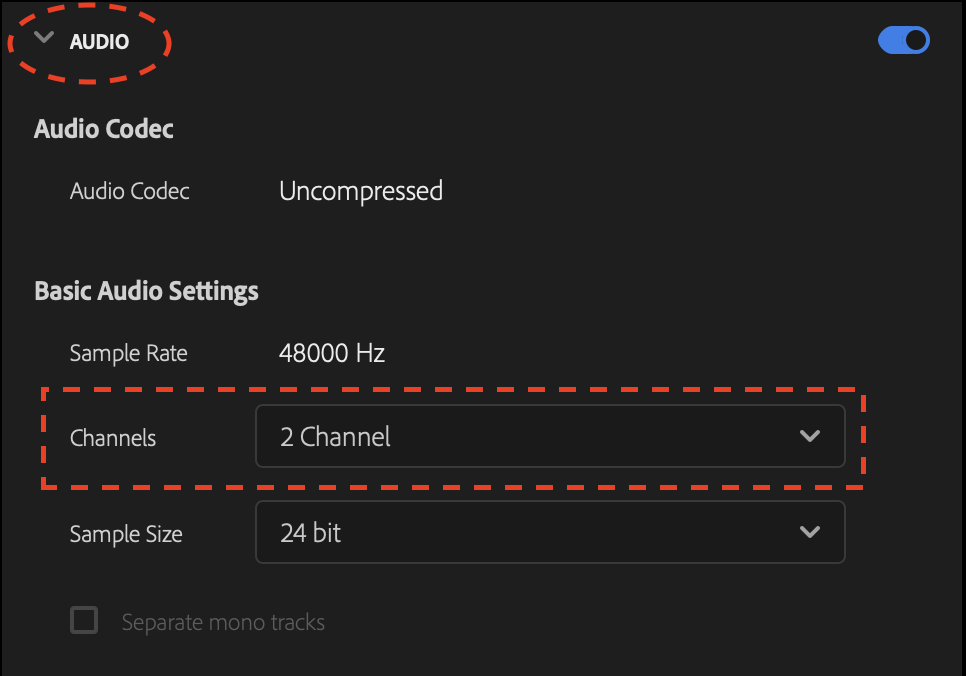

Audio Tab
| Select | 2 Channel |
| Select | 16 bit or 24 bit |
Export
| Select | Export to Save File |
Chrominance & Luminance Levels

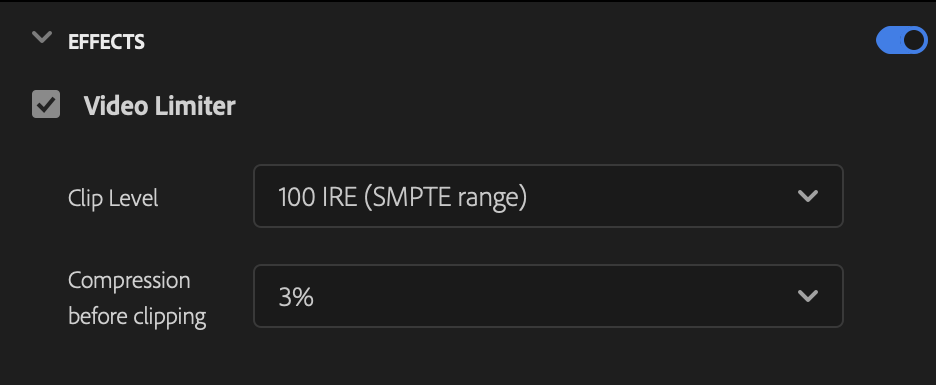

Some sequences may require a Video Limiter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
To apply a Video Limiter set the following Effect during the Export Process
Effects Tab
| Select | Video Limiter |
| Clip Level | 100 IRE (SMPTE Range) |
| Compression before clipping | 3% |
Audio Levels

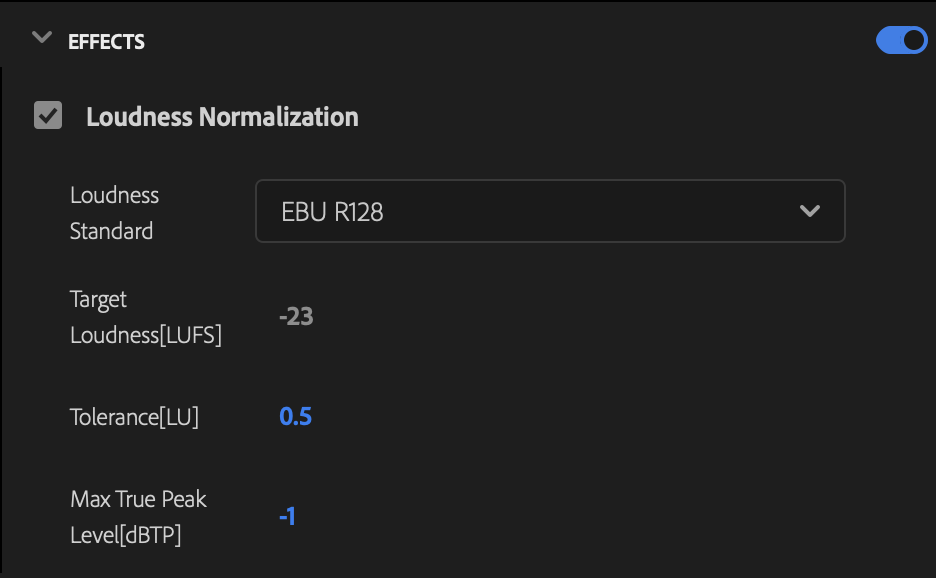

It is possible to adjust the Audio Level of the sequence on export to meet the required level if the audio in the timeline is not already correct.
To Apply an Audio Adjustment set the following Effect during the Export Process
Effects Tab
| Select | Audio Normalization |
| Loudness Standard | EBU 128 |
| Target Loudness | -23 LUFS |
| Tolerance | 0.5 LU |
| True Max Peak Level | -1 dBTP |
Preset
A Cape Advanced TV Spec Preset for Adobe is available in the download section below.
