Please refer to the relevant Cape Advanced TV Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Media Encoder CC. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Cape Advanced TV.
The encoding process and final quality of files remain the responsibility of the supplier. Cape Advanced TV cannot accept liability for incorrect or low-quality encoding.
Project Set Up

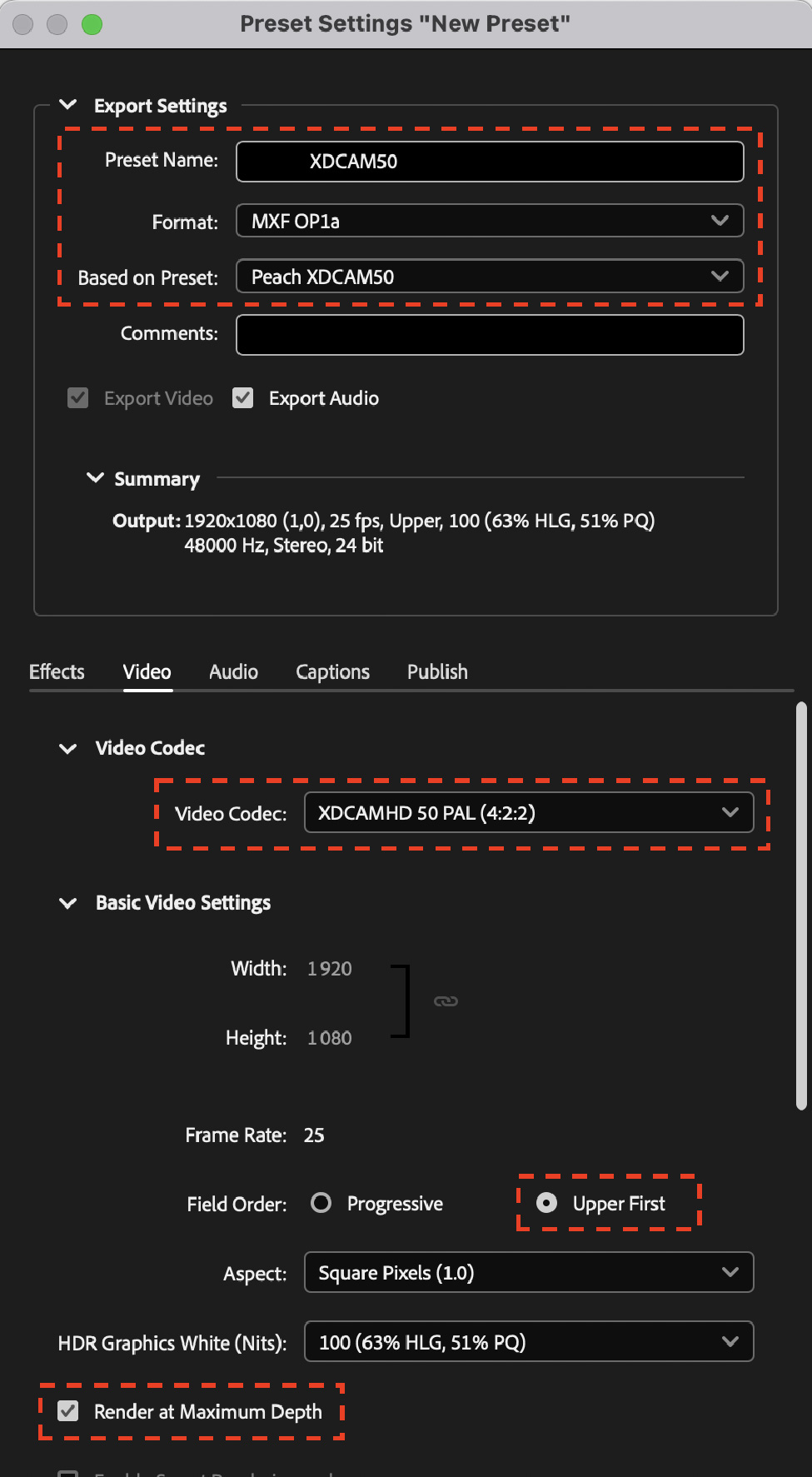

Export Settings
| Select | Preset, Create Encoding Preset... |
| Preset Name | e.g. Cape Advanced TV XDCAM HD |
| Format | MXF 0P1a |
| Based on Preset | XDCAM HD 50 PAL 50i |
Video Tab
| Video Codec |
XDCAMHD 50 PAL (4:2:2) or |
| XDCAMHD 50 NSTC (4:2:2) as required | |
| Frame Rate | 25 or 29.97 as required |
| Field Order | Upper First |
| Select | Render at Maximum Depth |

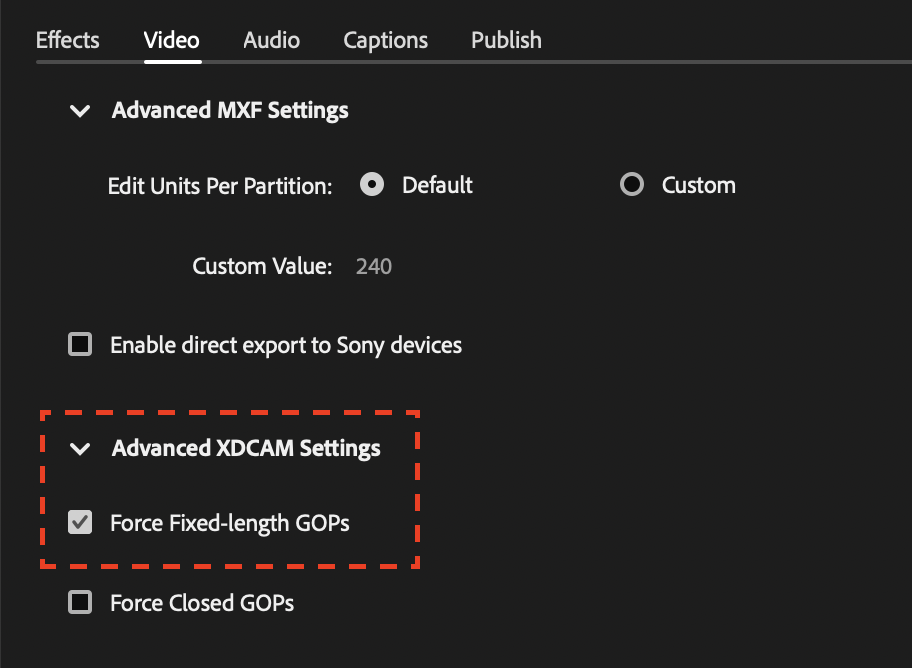

| Select | Force Fixed-Length GOPS |

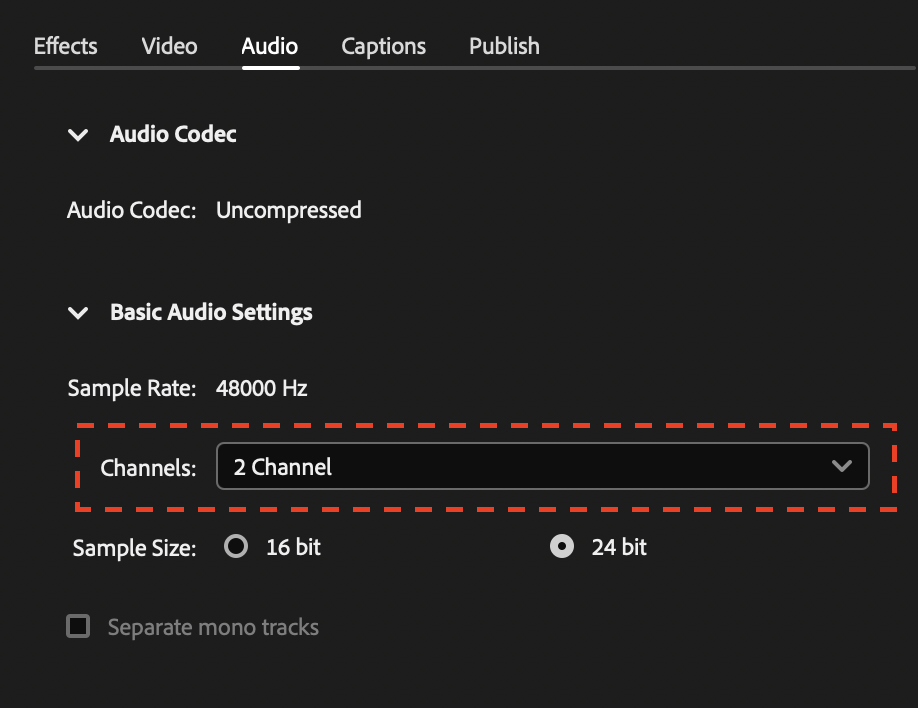

Audio Tab
| Select | 2 Channel |
| Select | 16 bit or 24 bit |
Export

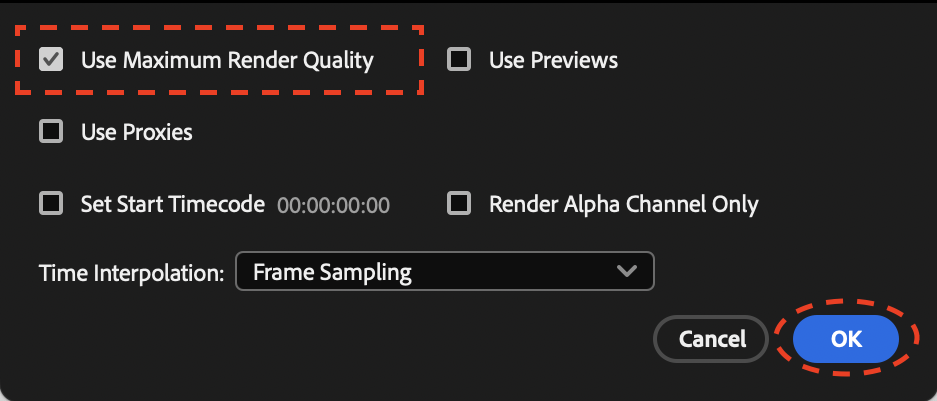

| Select | Use Maximum Render Quality |
| Click | OK to Save the Encoding Preset |
Media Browser
| Navigate | To the Master File to be transcoded |
| Right Click | The Master File |
| Click | Import to Queue |
Queue Window
| Format | MXF OP1a |
| Preset | Newly Created Preset (e.g.Cape XDCAM HD) |
| Output File | Choose Export Location and Name File |
| Click | Save |
| Click | Green Play Icon or Press Return to Export File |
Chrominance & Luminance Levels
Some sequences may require a Video Limiter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
To apply a Video Limiter set the following Effect during the Preset Set Up Process
Effects Tab
| Select | Video Limiter |
| Clip Level | 100 IRE (SMPTE Range) |
| Compression before clipping | 3% |
Audio Levels
It is possible to adjust the Audio Level of the sequence on export to meet the required level if the audio in the timeline is not already correct.
To Apply an Audio Adjustment set the following Effect during the Preset Set Up Process
Effects Tab

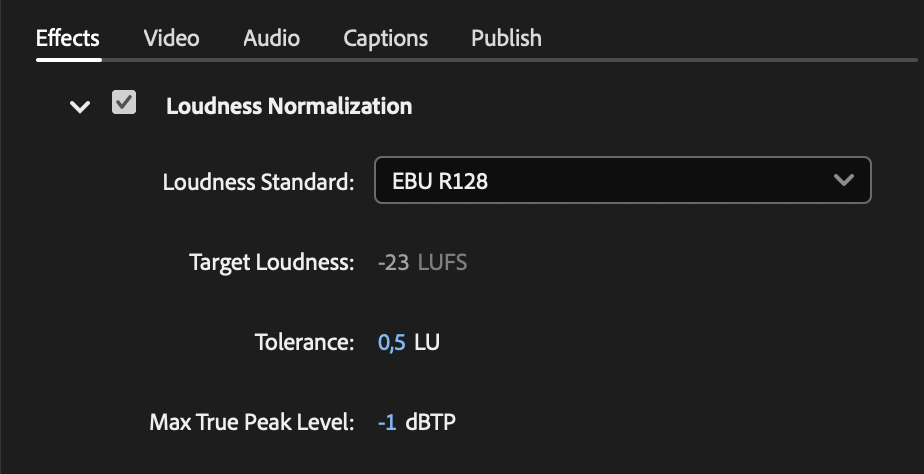

| Select | Audio Normalization |
| Loudness Standard | EBU R128 |
| Target Loudness | -23 LUFS |
| Tolerance | 0.5 LU |
| True Max Peak Level | -1 dBTP |
Preset
A Cape Advanced TV Spec Preset for Adobe is available in the download section below.
