Please refer to the relevant Cape Advanced TV Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Premiere Pro CC. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Cape Advanced TV.
The encoding process and final quality of files remain the responsibility of the supplier. Cape Advanced TV cannot accept liability for incorrect or low-quality encoding.
Export Sequence
Export Settings
| Select | The Final Sequence |
| Select | File, Export, Media... |
| Format | QuickTime |
| Preset | Apple ProRes 422 HQ |
| Output Name | Should Match Version ID |

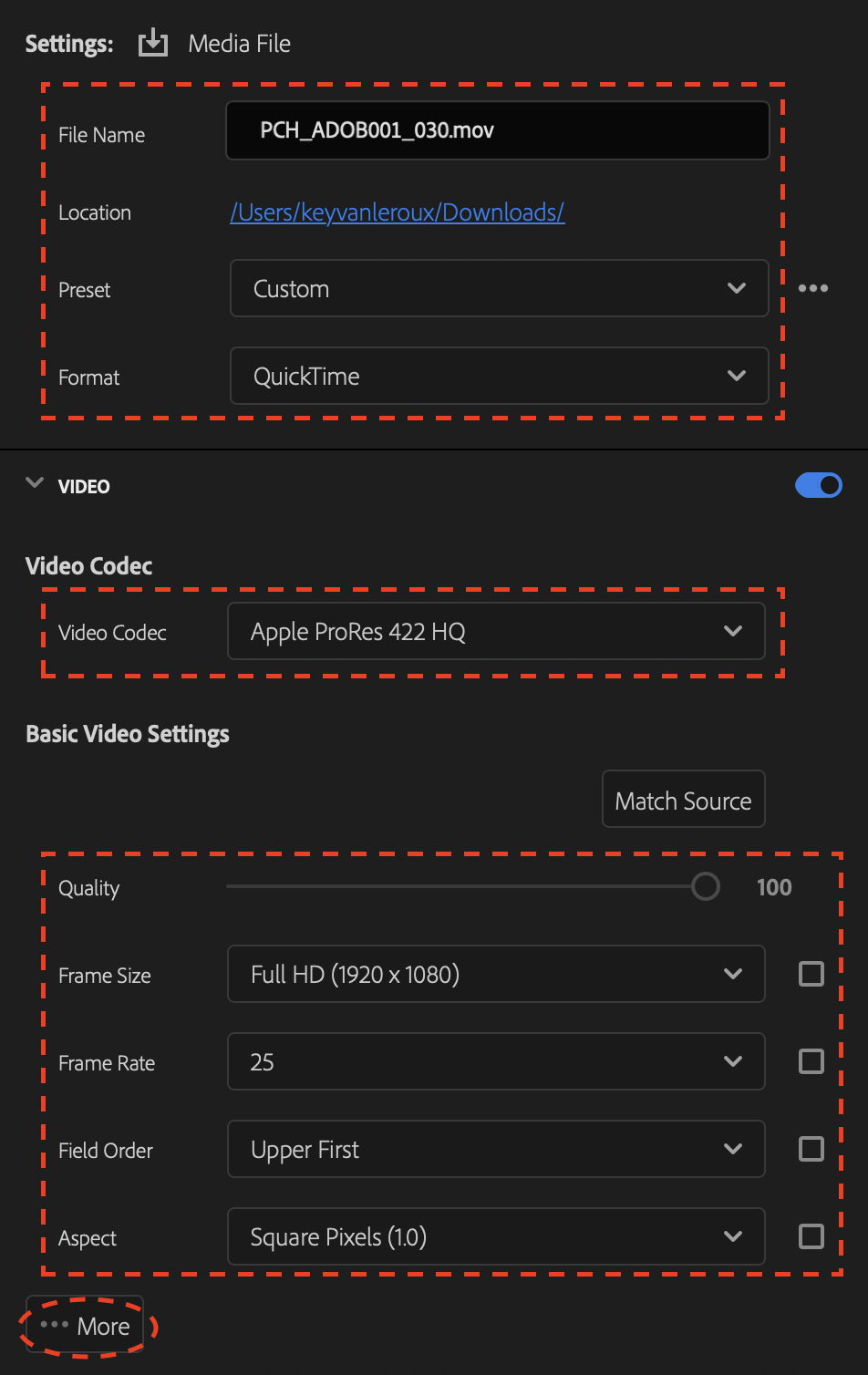

Video Tab
|
Video Codec |
Apple ProRes 422 HQ |
| Quality | 100 |
| Frame Size | Full HD (1920 x 1080) |
| Frame Rate | 25 or 29.97 as required |
| Field Order | Upper First |
| Aspect | Square Pixels (1.0) |

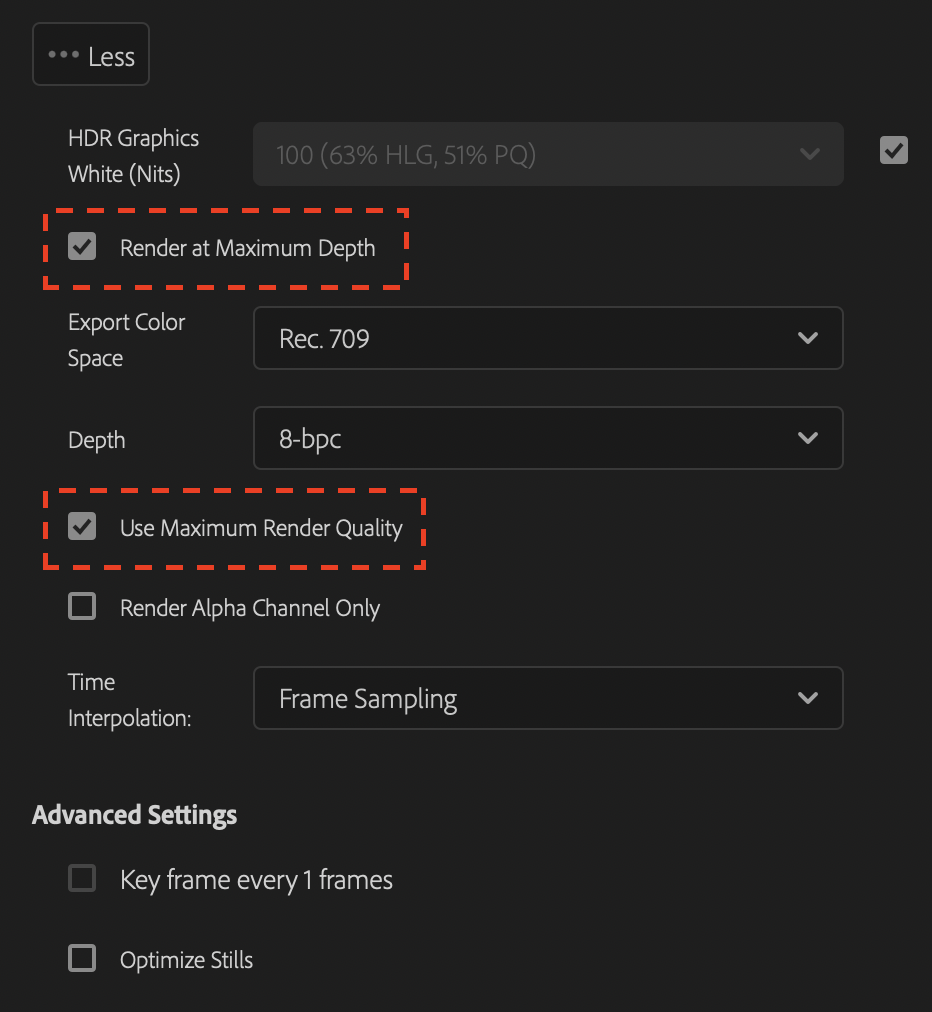

| Click on | ...More |
| Select | Render at Maximum Depth |
| Select |
Use Maximum Render Quality |

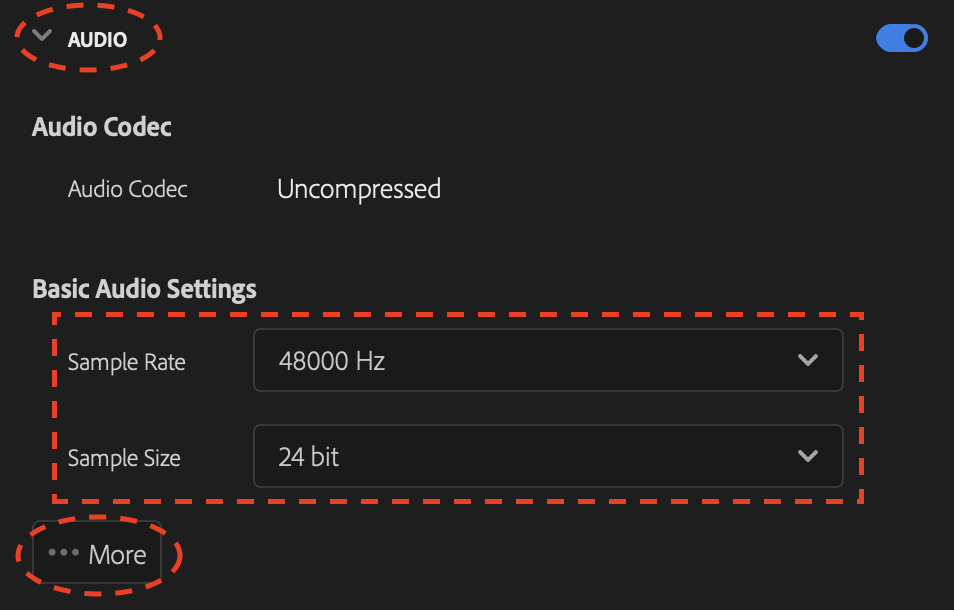

Audio Tab
| Select | 48000 Hz |
| Select | 16 bit or 24 bit |

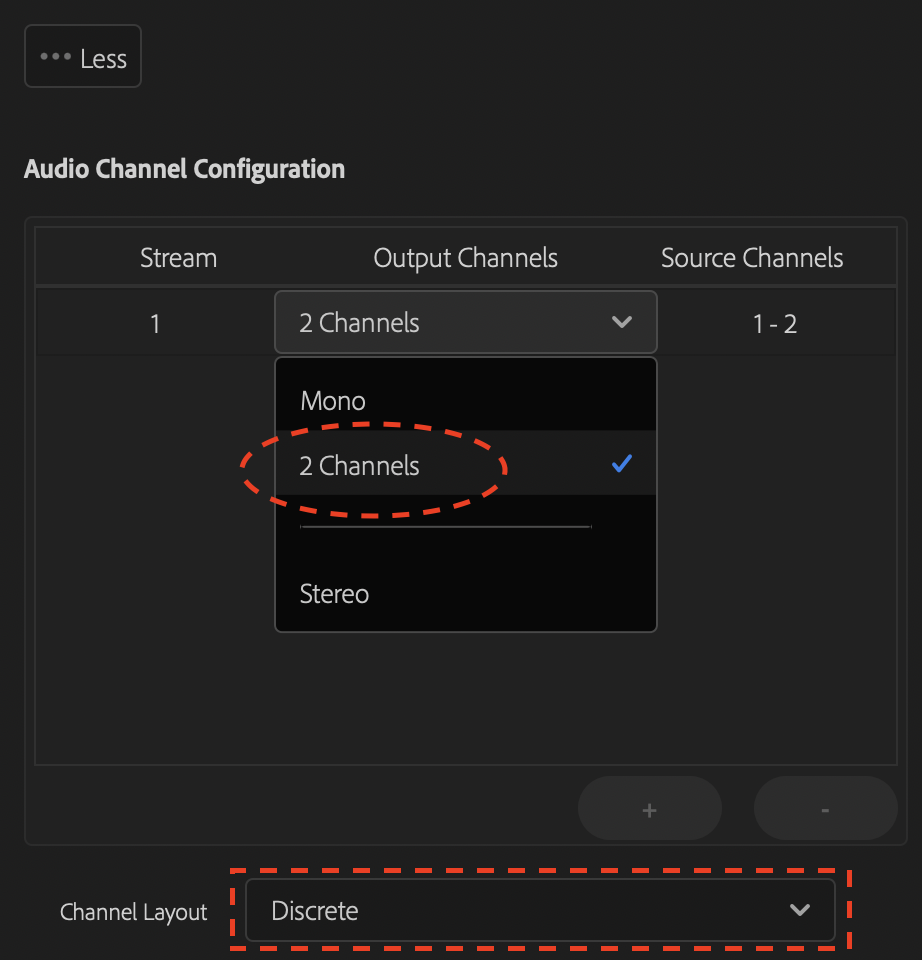

| Click on | ...More |
| Output Channels | 2 Channels |
| Channel Layout | Discrete |

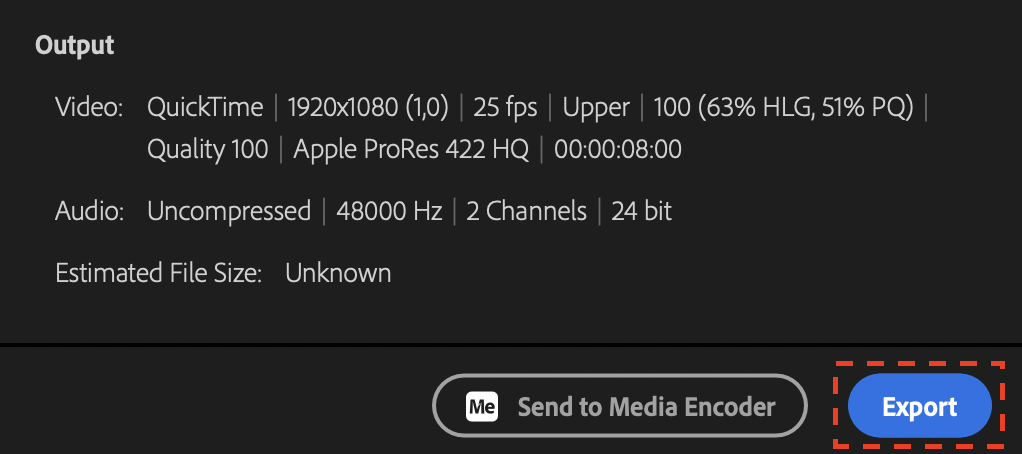

Export
| Select | Export to Save File |
Chrominance & Luminance Levels
Some sequences may require a Video Limiter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
To apply a Video Limiter set the following Effect during the Export Process
Effects Tab
| Select | Video Limiter |
| Clip Level | 100 IRE (SMPTE Range) |
| Compression before clipping | 3% |
Audio Levels
It is possible to adjust the Audio Level of the sequence on export to meet the required level if the audio in the timeline is not already correct.
To Apply an Audio Adjustment set the following Effect during the Export Process

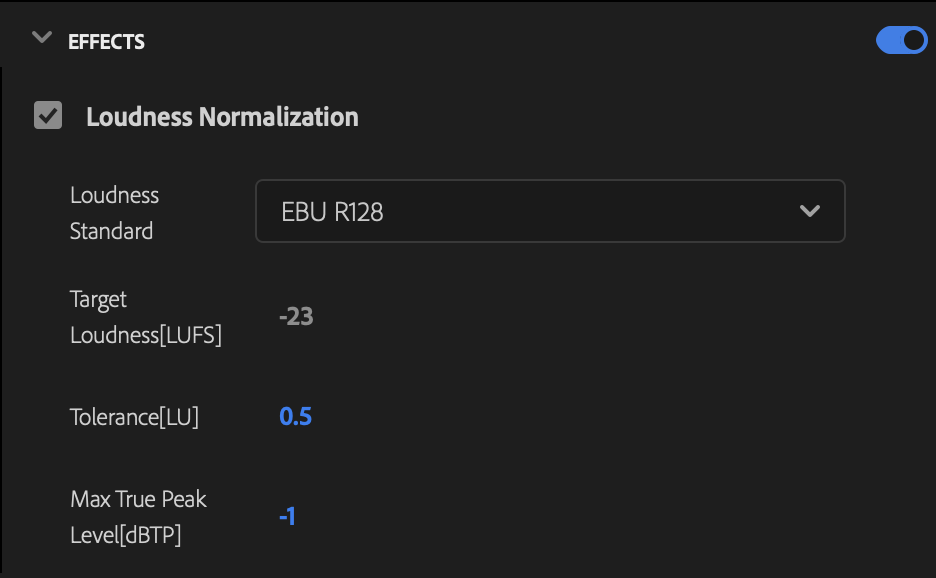

Effects Tab
| Select | Loudness Normalization |
| Loudness Standard | EBU R128 |
| Target Loudness | -23 LUFS |
| Tolerance | 0.5 LU |
| True Max Peak Level | -1 dBTP |
Preset
A Cape Advanced TV Spec Preset for Adobe is available in the download section below.
Download
