All files uploaded to Cape Advanced TV are immediately run through an Auto QC process. To ensure files are not rejected please adhere to the guidelines below.
| HD (1080/50i) | |
| Container | MXF (OP1a) |
| Video | |
| Codec | XDCAM HD422 |
| Format Profile | 422P@HighLevel |
| Frame size | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Frame rate | 25 fps |
| Interlacing | Upper Field First |
| Bitrate | 50 Mbps |
| Chroma Subsampling | 4:2:2 |
| GOP Length | 12 (M=3, N=12) |
| Audio | |
| Format | PCM (Little Endian) |
| Channels | 2 (1 channel per stream) |
| Sample Rate | 48 kHz |
| Bit Depth | 16 bits / 24 bits |
File Layout
Files must be exact duration; TVC content only. No pre or post-roll such as clock/slate, bars, black, hold, freeze or audio tone is required.
Video Levels
Levels must be in accordance with ITU BT.709 for HD content, and EBU R103-2000 recommendations:
Luma = Level 16-235 (not RGB 0-255 level), equivalent to 0% - 100% or
0mV - 700mV. Chroma = Level 16-240, equivalent to maximum 100% RGB.
All content should be upper/first field dominant throughout and must be free of encoding artefacts, dropout, glitches, blocking, interlace issues or excessive aliasing and considered broadcast quality throughout.
Audio Levels
The Programme Loudness Level must be normalized to -23 LUFS (±0.5 LU) and -1 dBTP max, according to EBU R128 recommendation.
Please Note: When sending Ads to TV2 Denmark a -3 dBTP max is required.
Audio should be free of any distortion, glitches, or excessive sibilance and must be in phase and in sync with the video throughout.
Safe Area
Please ensure all On Screen Text is free from spelling and grammatical errors, and within the relevant Safe Area in accordance with EBU R95-2017 recommendations

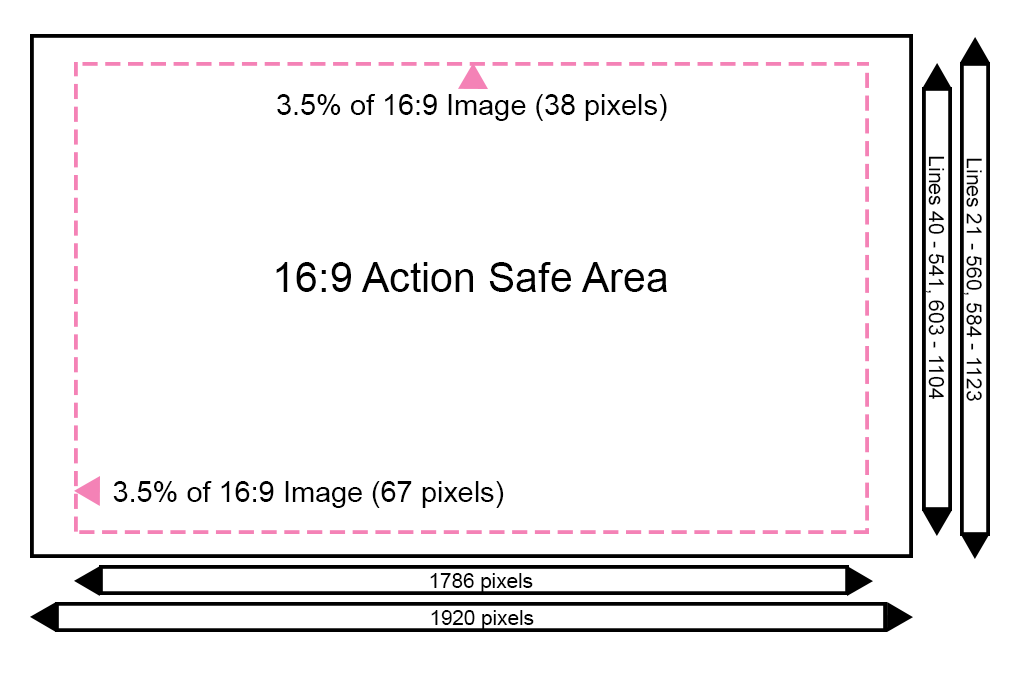

HD Safe Area 1920x1080 Interlaced
