Please refer to the relevant Cape Advanced TV Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Apple Compressor. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Cape Advanced TV.
The encoding process and final quality of files remain the responsibility of the supplier. Cape Advanced TV cannot accept liability for incorrect or low-quality encoding.
Compressor Set Up

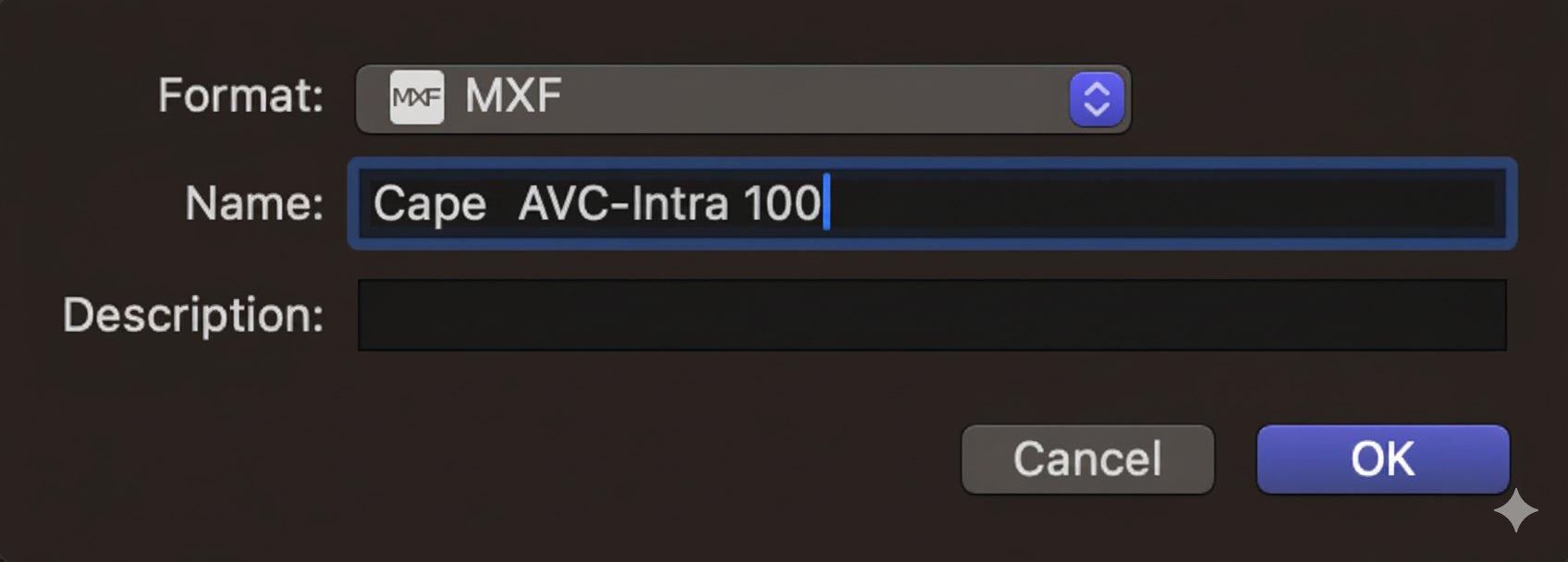

New Setting
| Click | The + icon in the bottom left corner |
| Select | New Setting |
| Format | MXF |
| Name | e.g. Cape Advanced TV AVC-Intra 100 |
| Click | OK |
Then open the Inspector (top right corner button) and apply the below settings:

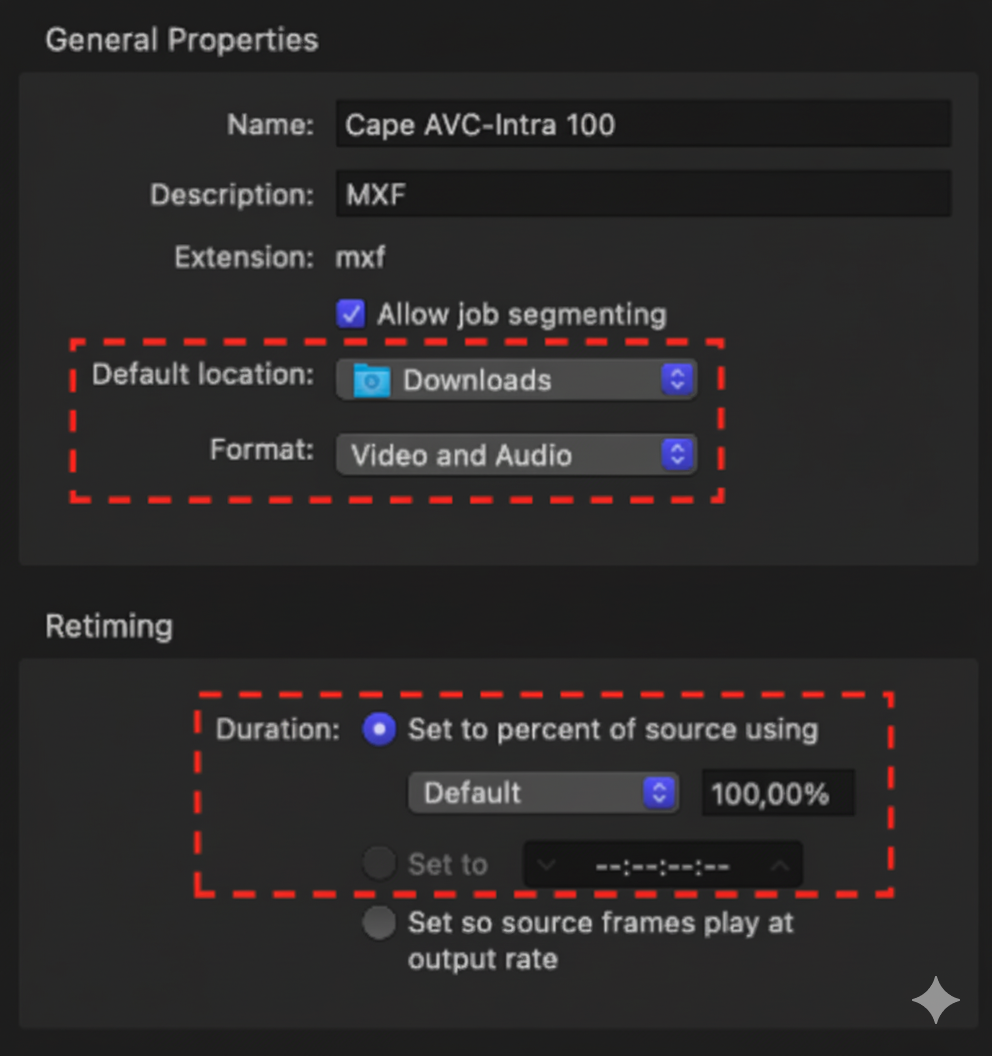

Inspector - General Tab
| Default Location |
Select a default location of your choosing (you can create custom locations from the Locations tab in the left panel) |
| Retiming |
100% - Default You can also export a file to a given duration by using Set to and entering the relevant TimeCode |
Inspector - Video Tab
| Frame size | 1920 x 1080 |
| Frame Rate | 25 or 29.97 as required |
| Field Order | Top First |
| Codec | AVC-Intra (Class 100) |

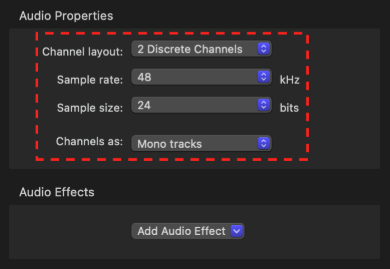

Inspector - Audio Tab
| Channel Layout | 2 Discrete Channels |
| Sample Rate | 48 kHz |
| Sample Size | 16 bit or 24 bit |
| Channels as | Mono tracks |
Export

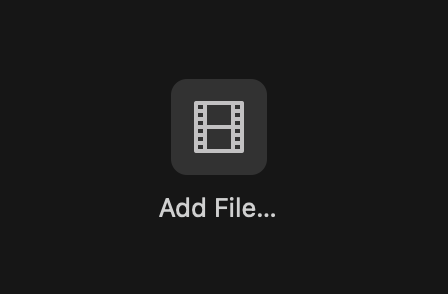

| Click | Add File... |
| Select | Source file on your computer |

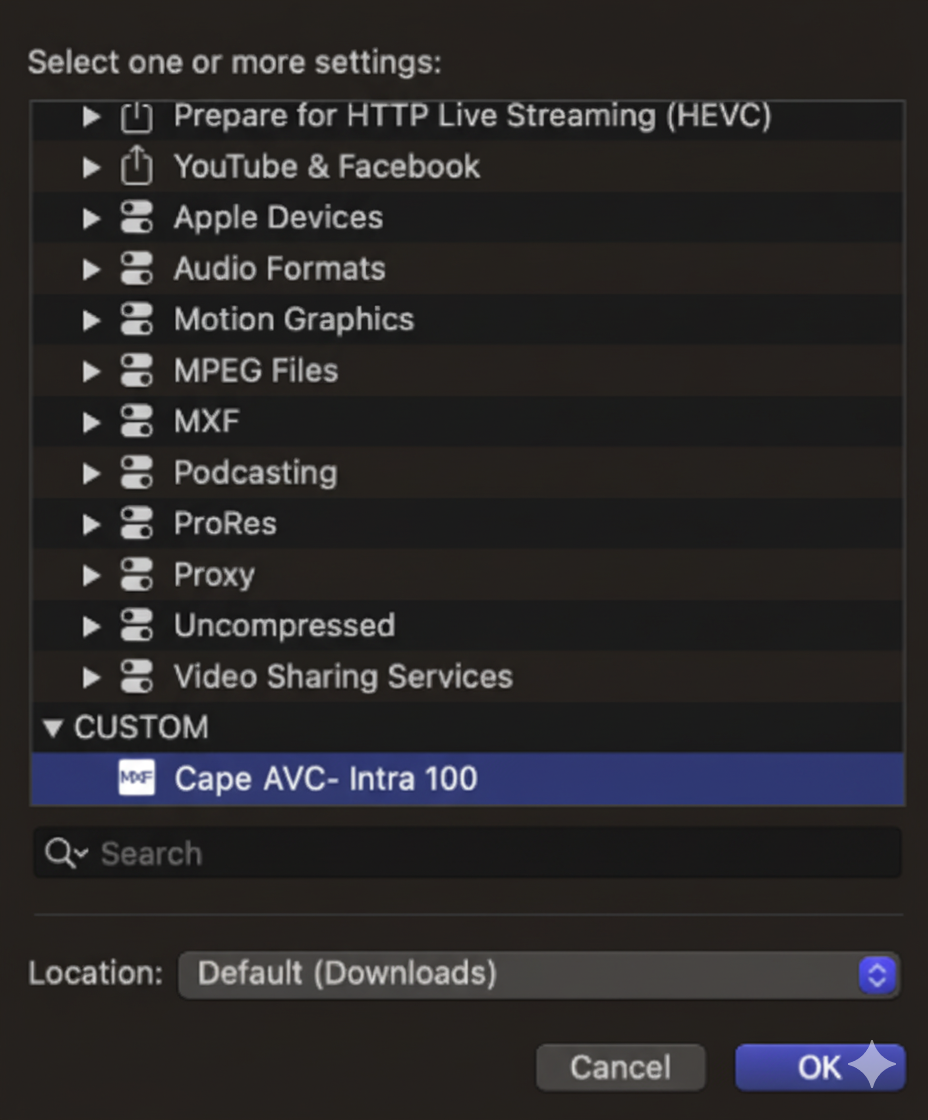

| Export Setting | Select Newly Created Setting (in CUSTOM dropdown) |
| Location | Select File Location |
| Click | OK |

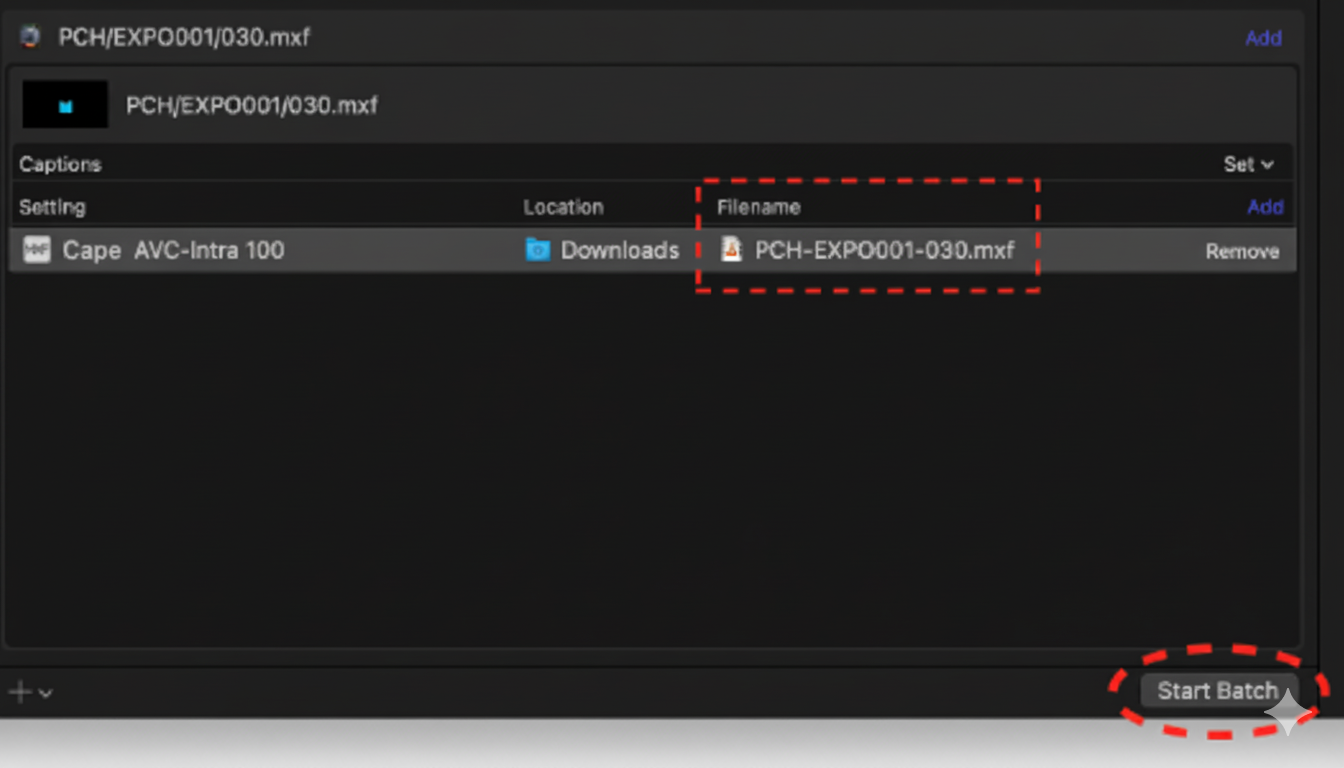

| Filename | Should Match Version ID |
| Click | Start Batch |
Alternatively, you can drag and drop several files at the same time in the Current Batch View and then drag and drop the Newly Created Setting onto them to apply the export setting before clicking on Start Batch.
Please note
Some sequences may require a Video Limiter or Broadcast Safe filter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
Please ensure Audio levels are set correctly before beginning the export process.
